Our factory is a professional hydraulic hose manufacturer with over 20 years with ISO&MSHA certification. We supply durable, high-performance hoses that serve a wide range of industries and applications.

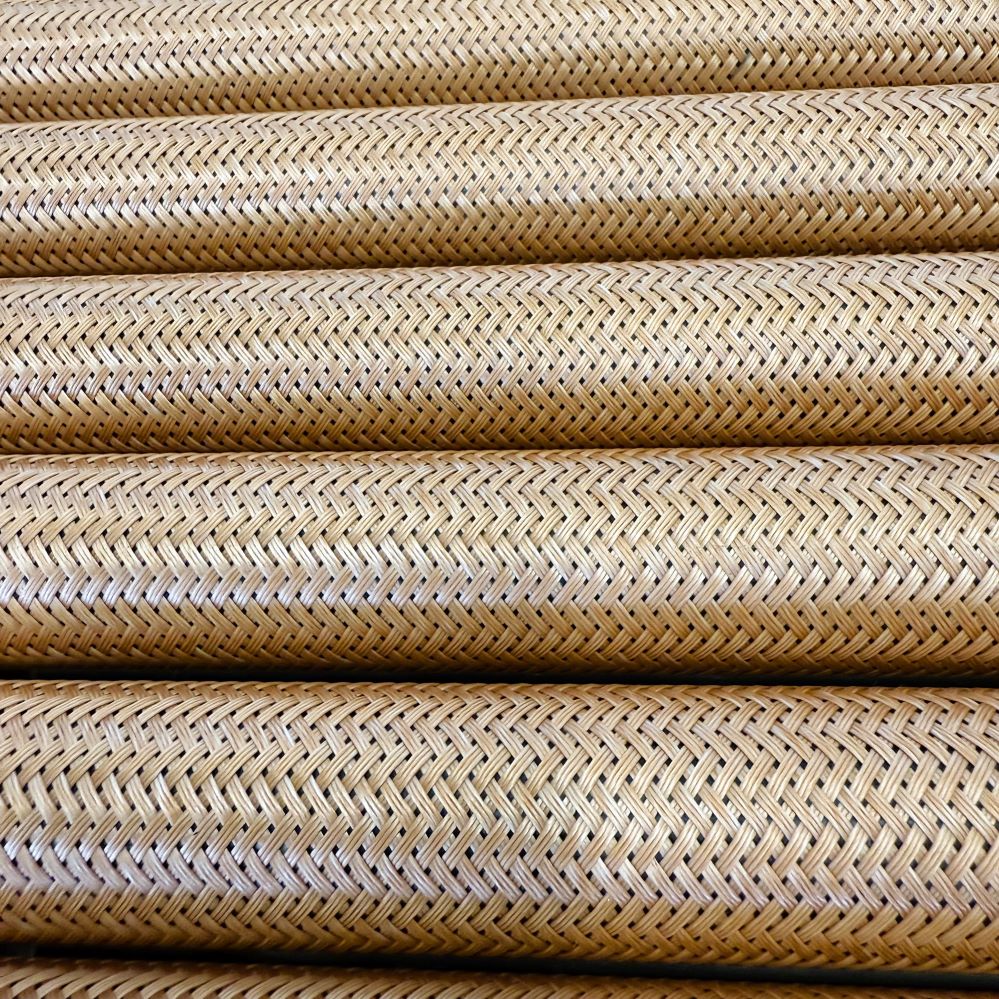

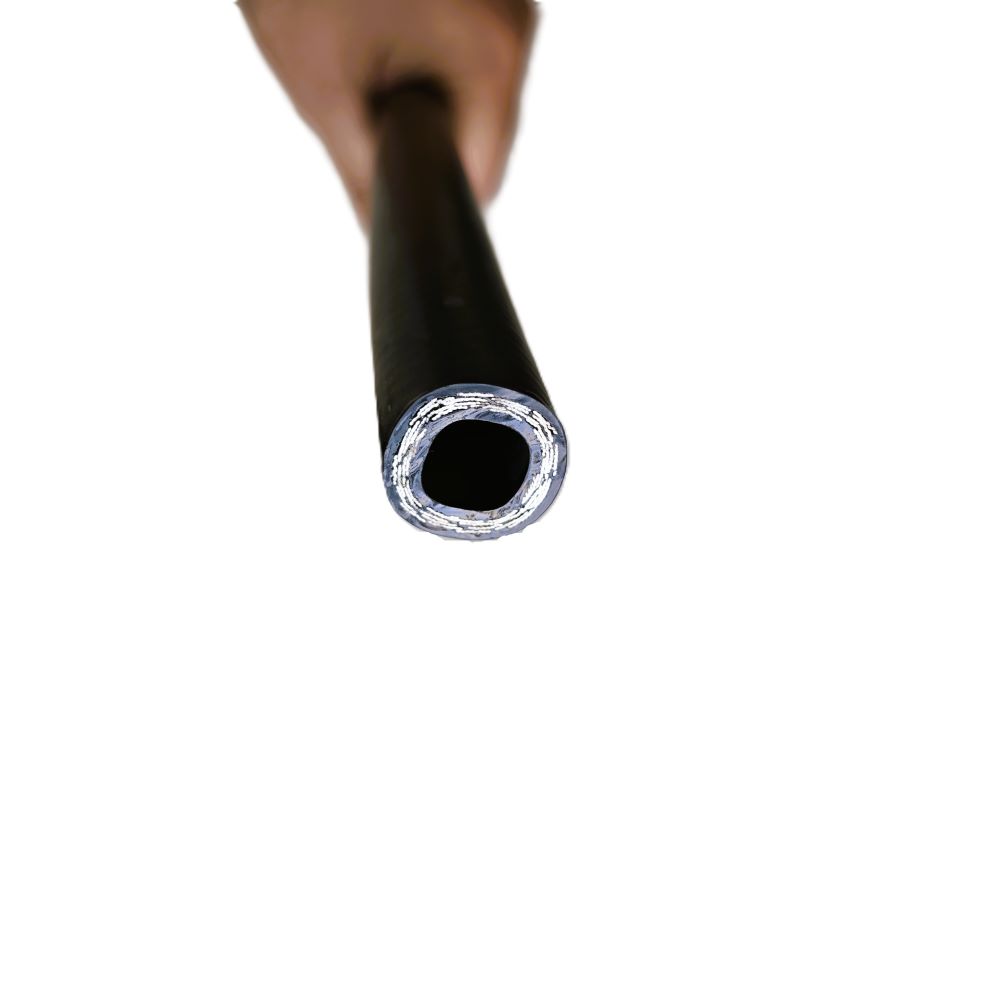

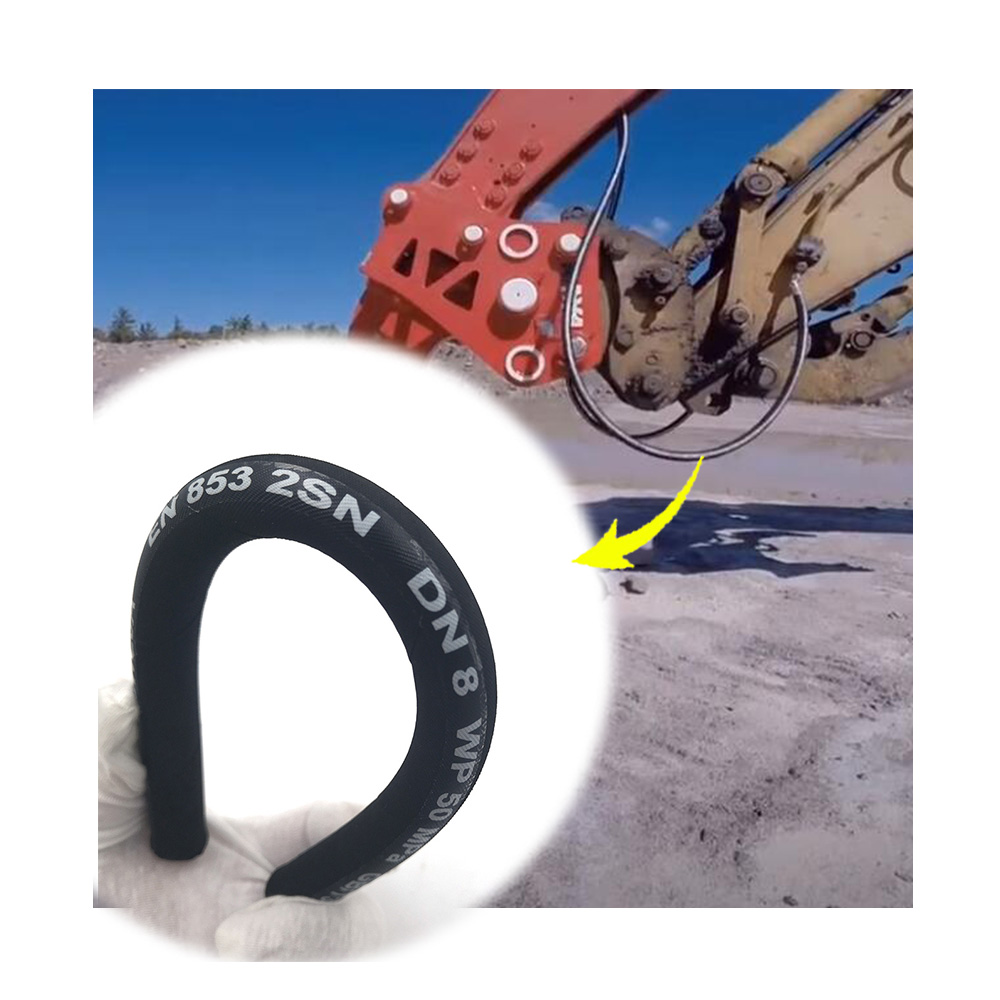

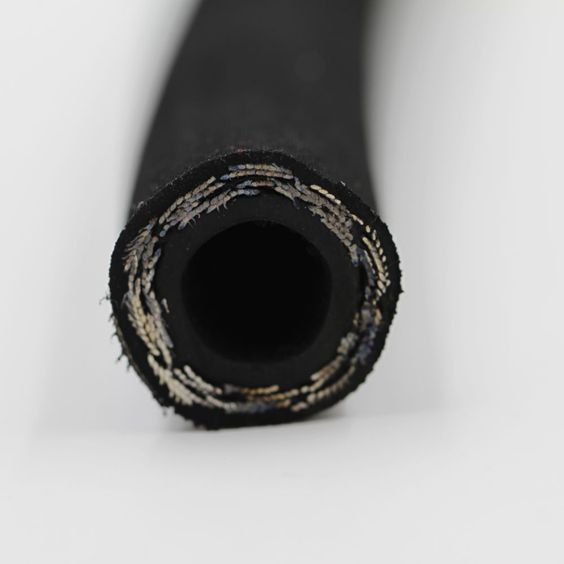

DIN EN 853 2SN/2ST Hose High-Pressure Hydraulic Hose with Dual Steel Wire Braid Reinforcement:
| SIZE
(mm) |
SIZE
(inch) |
SAE
Dash |
ID
(Min) |
ID
(Max) |
RL
(Min) |
RL
(Max) |
OD
(Max) |
CT
(Min) |
CT
(max) |
Max
Working P. (Mpa) |
Max
Test P. (Mpa) |
Min
Burst P. (Mpa) |
Min
Bend R. (mm) |
W.T
(kg/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 3/16″ | -03 | 4.8 | 5.2 | 10.6 | 11.6 | 13.3 | 0.8 | 1.5 | 41.5 | 83.0 | 166.0 | 90 | 320 |
| 6 | 1/4″ | -04 | 6.2 | 6.6 | 12.1 | 13.3 | 15.0 | 0.8 | 1.5 | 40.0 | 80.0 | 160.0 | 100 | 350 |
| 8 | 5/16″ | -05 | 7.9 | 8.3 | 13.7 | 14.9 | 16.3 | 0.8 | 1.5 | 35.0 | 70.0 | 140.0 | 115 | 440 |
| 10 | 3/8″ | -06 | 9.7 | 10.2 | 16.1 | 17.3 | 18.7 | 0.8 | 1.5 | 33.0 | 66.0 | 132.0 | 130 | 510 |
| 13 | 1/2″ | -08 | 12.7 | 13.3 | 19.0 | 20.6 | 21.8 | 0.8 | 1.5 | 27.5 | 55.0 | 110.0 | 180 | 630 |
| 16 | 5/8″ | -10 | 15.7 | 16.3 | 22.2 | 23.8 | 25.0 | 0.8 | 1.5 | 25.0 | 50.0 | 100.0 | 200 | 740 |
| 19 | 3/4″ | -12 | 18.8 | 19.4 | 26.2 | 27.8 | 29.2 | 0.8 | 1.5 | 21.5 | 43.0 | 85.0 | 240 | 960 |
| 25 | 1″ | -16 | 25.1 | 25.8 | 34.1 | 35.7 | 36.7 | 0.8 | 1.5 | 16.5 | 32.5 | 65.0 | 300 | 1300 |
| 32 | 1 1/4″ | -20 | 31.8 | 32.8 | 43.3 | 45.7 | 47.5 | 1.0 | 2.0 | 12.5 | 25.0 | 50.0 | 420 | 1800 |
| 38 | 1 1/2″ | -24 | 38.0 | 39.0 | 49.6 | 52.0 | 54.0 | 1.3 | 2.5 | 9.0 | 18.0 | 36.0 | 500 | 2200 |
| 51 | 2″ | -32 | 51.0 | 52.0 | 62.3 | 64.7 | 66.8 | 1.3 | 2.5 | 8.0 | 16.0 | 32.0 | 630 | 3000 |
Attributes:
| Place of Origin | China |
| Province | Tianjin |
| Brand | HOYITE |
| Processing Service | Cutting, Moulding |
| Certification | ISO,MSHA |
| Material | Synthetic Rubber&High tensile Steel Wire |
| Rope Length | 20 m,50 m,100 m |
| OEM | OEM Services Provided |
| Sample | Free (Customer Pays Freight) |
| Surface | wrapped or smooth |
| Color | Black or Customized Color |
| Bursting pressure | 4 × Working pressure |
Our company is a professional manufacturer of rubber and plastic hoses in Tianjin, China, with dedicated teams and factories. We mainly make hydraulic hoses, including steel wire braided and steel wire spiraled types. All products are made to SAE and DIN EN standards.
Our Advantages:
1) Advanced production equipment
2) ISO 14000 / ISO 9000 /CE/MSHA Certificate
3) Strict quality inspection and strong team
4) Environmental protection without pollution
5) Strong and experienced team strength which focus on export
6)High impulse:Hoses tested to 800,000+ impulse cycles(at 133% WP) for a longer service life and fewer failures.

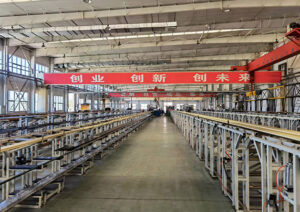

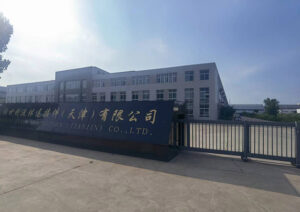

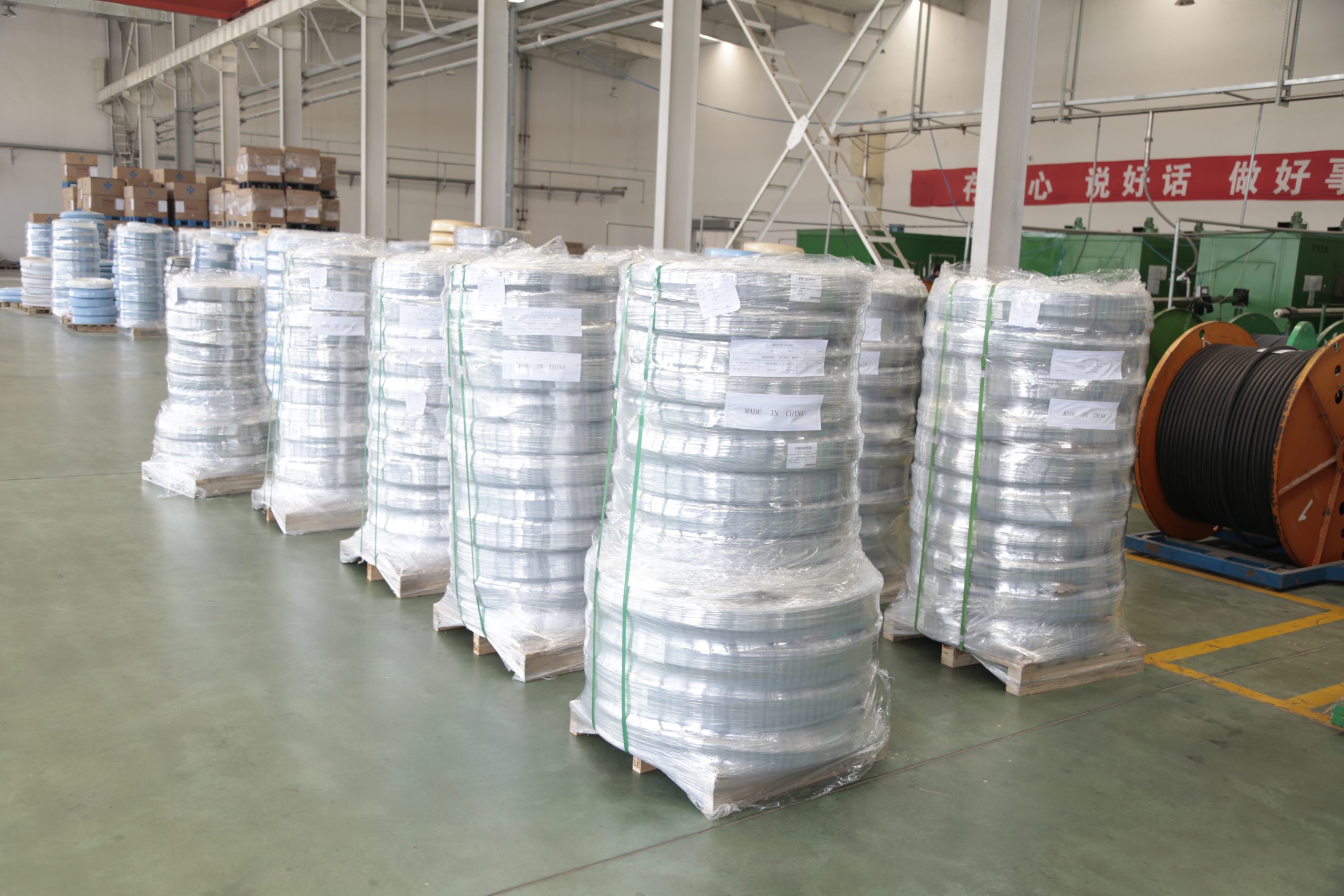

Our factory was founded in 2001,Our registered capital is US$9.2 million, and we cover an area of 36,000 square meters, with a construction area of 15,000 square meters. We have the capacity of monthly producing 500,000+meters of various kinds of rubber hose.

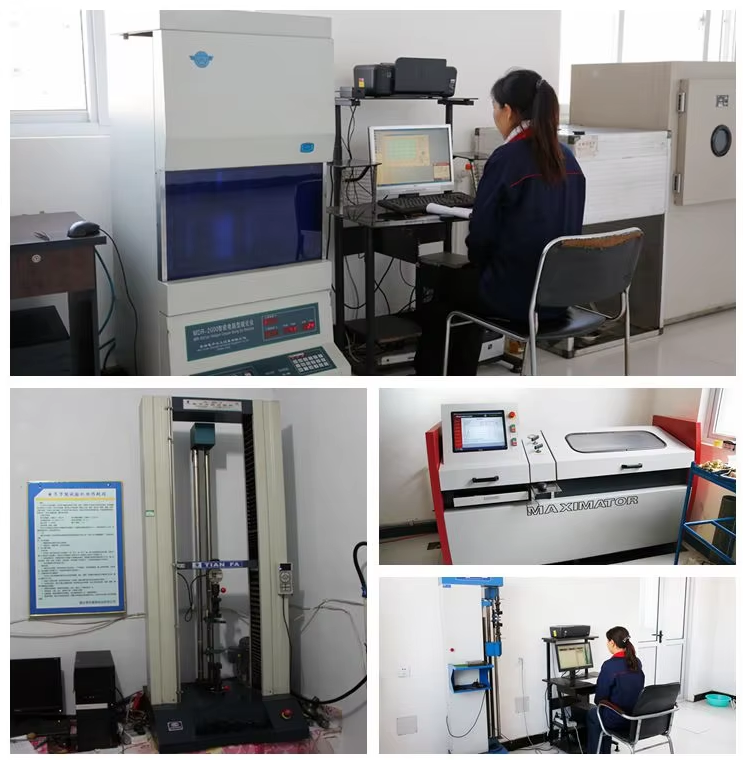

Our rubber materials undergo a series of strict tests:
1)Dynamic Flex Test (counting how many bends until break)
2)Abrasion Resistance Test (measuring weight loss after 2000 wear cycles)
3)Physical Properties Test (tensile strength, breaking strength, modulus)
4)Heat Aging Test (performance under high temperature conditions)
Only rubber that passes the tests can be used.That’s why our hoses are so reliable.
Every single hose undergoes a strict pressure test at 2 times the working pressure.
Hydraulic hose assemblies must undergo several critical tests, including:
1)Burst Test (to determine maximum pressure capacity)
2)High/Low Temperature Test (verifying performance in extreme temperatures)
3)Impulse Test (simulating pressure cycling under operating conditions)
What’s our secret for stable quality? First, we have a strict checking system. Second, and more important, is our team. Many workers have 7-8 years of experience, and our lead engineer has over 30 years.this experience means we make the same good quality, every time.
