Our factory is a professional hydraulic hose manufacturer with over 20 years with ISO&MSHA certification. We supply durable, high-performance hoses that serve a wide range of industries and applications.

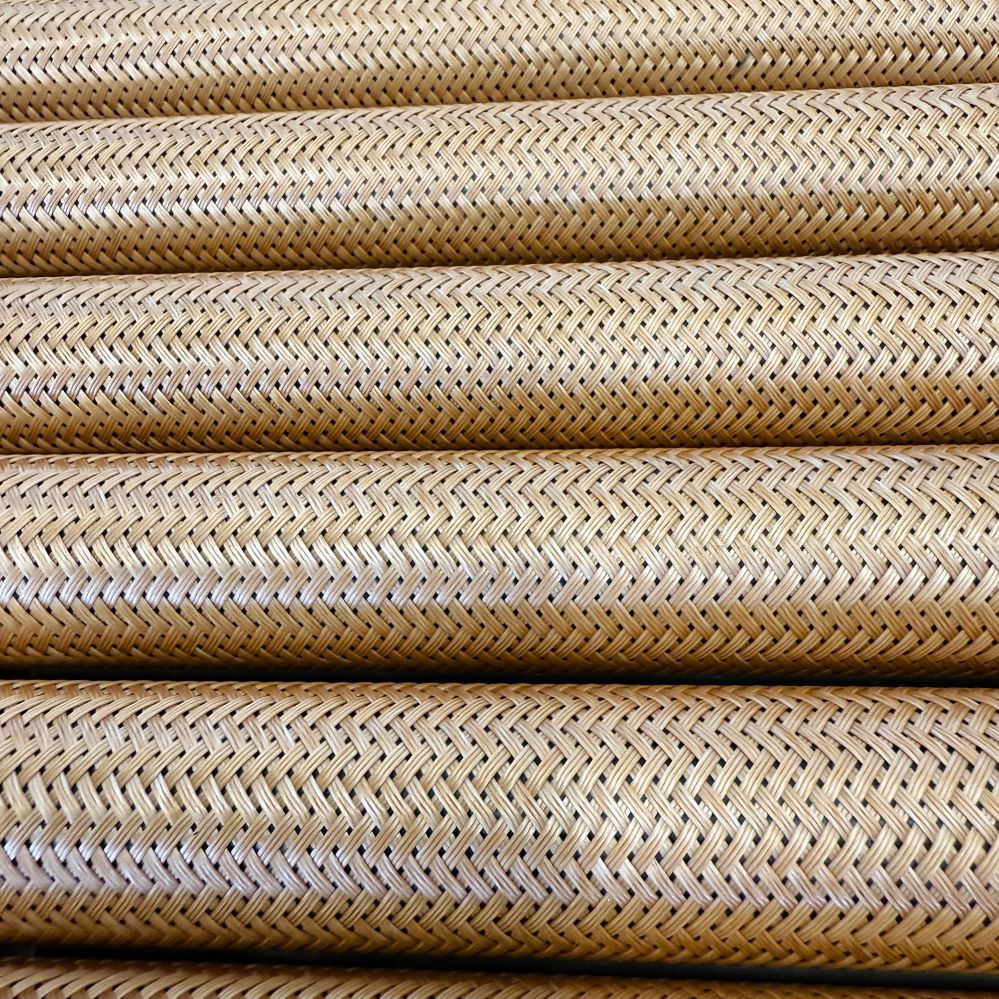

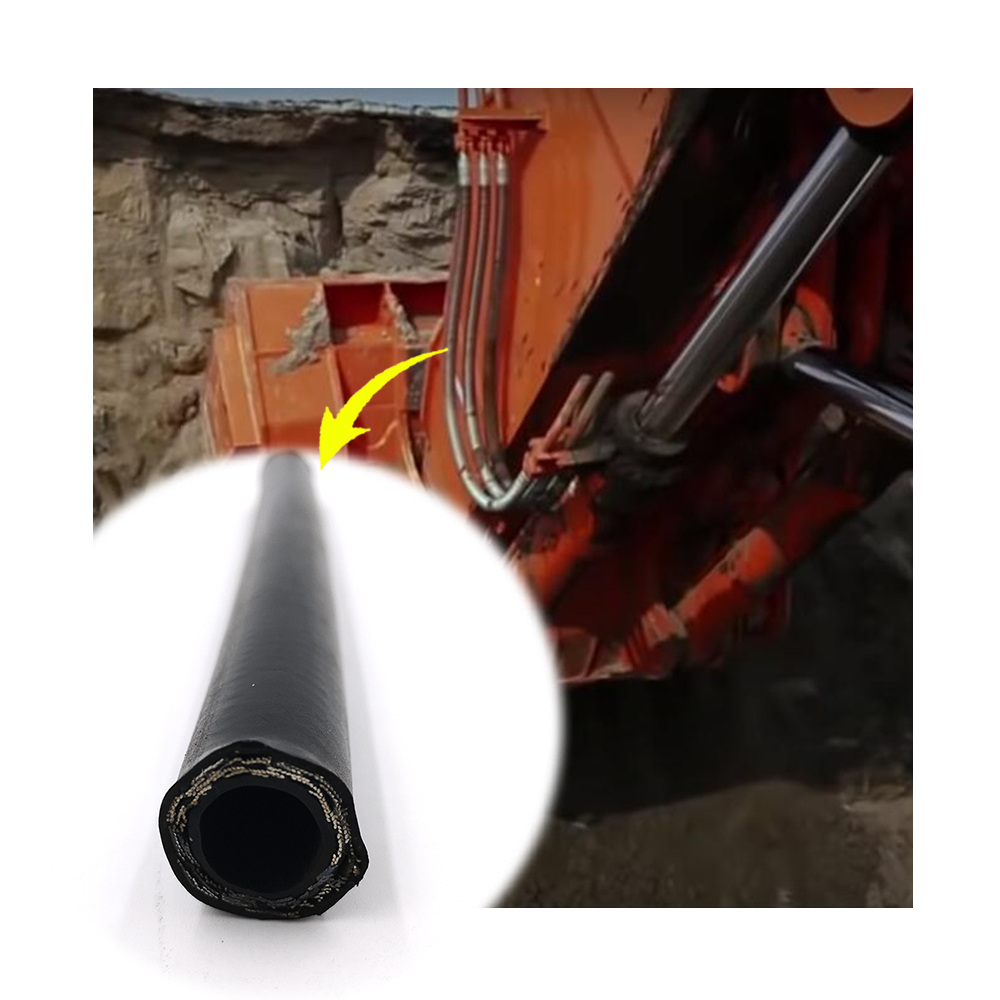

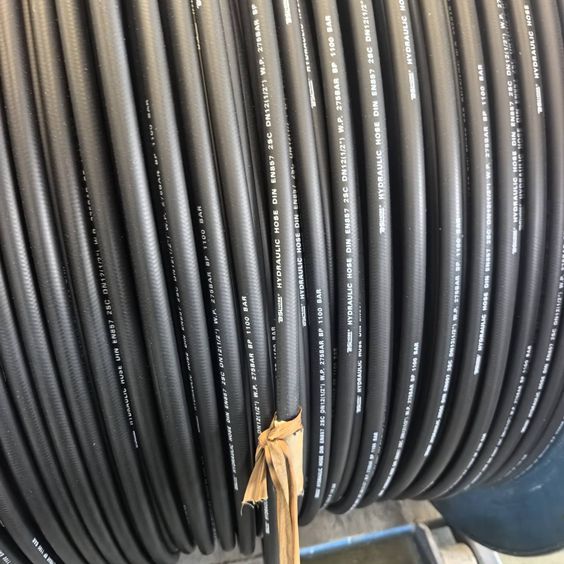

DIN EN 857 2SC Hose High Pressure Wire braid reinforced hydraulic rubber hose:
| SIZE
(mm) |
SIZE
(inch) |
SAE
Dash |
I.D
(Min) |
I.D
(Max) |
R.D
(Min) |
R.D
(Max) |
O.D
(mm) |
Max W.P
(Mpa) |
Max W.P
(Psi) |
P.P
(Mpa) |
P.P
(Psi) |
Min B.P
(Mpa) |
Min B.P
(Psi) |
Min B.R
(mm) |
W.T
(kg/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 1/4″ | -04 | 6.2 | 6.6 | 10.6 | 11.7 | 13.0 | 40 | 5800 | 80 | 11600 | 160 | 23200 | 75 | 200 |
| 8 | 5/16″ | -05 | 7.9 | 8.3 | 12.1 | 13.3 | 15.2 | 35 | 5075 | 70 | 10150 | 140 | 20300 | 85 | 320 |
| 10 | 3/8″ | -06 | 9.7 | 10.2 | 14.4 | 15.6 | 17.0 | 33 | 4785 | 66 | 9570 | 132 | 19140 | 90 | 430 |
| 13 | 1/2″ | -08 | 12.7 | 13.3 | 17.5 | 19.1 | 20.5 | 27.5 | 3990 | 55 | 7975 | 110 | 15950 | 130 | 510 |
| 16 | 5/8″ | -10 | 15.7 | 16.3 | 20.5 | 22.3 | 24.0 | 25 | 3625 | 50 | 7150 | 100 | 14500 | 170 | 560 |
| 19 | 3/4″ | -12 | 18.8 | 19.4 | 24.6 | 26.4 | 27.5 | 21.5 | 3120 | 43 | 6235 | 86 | 12470 | 200 | 810 |
| 25 | 1″ | -16 | 25.1 | 25.8 | 32.6 | 34.3 | 35.3 | 16.5 | 2390 | 33 | 4785 | 66 | 9570 | 250 | 1100 |
Attributes:
| Place of Origin | China |
| Province | Tianjin |
| Brand | HOYITE |
| Processing Service | Cutting, Moulding |
| Certification | ISO,MSHA |
| Material | Synthetic Rubber&High tensile Steel Wire |
| Rope Length | 20 m,50 m,100 m |
| OEM | OEM Services Provided |
| Sample | Free (Customer Pays Freight) |
| Surface | wrapped or smooth |
| Color | Black or Customized Color |
| Bursting pressure | 4 × Working pressure |
● Packaging:
After finishing the hose production, we will pack the hose. In general,
In woven bag, pallet, carton packaging, wooden cases or special request.
Woven belt 20 meters/roll, 50 meters/roll, 100 meters/roll.
Special packing is available according to customers’ requirements. If you need other packaging please contact us.
● Shipping:
The main method of transport is sea or air. FEDEX/DHL/UPS/TNT for samples.
Delivery Time: 3~15 days
Our factory is a professional rubber and plastic hose manufacturer in Tianjin, China. There are individual teams and factories. Our company’s main products are hydraulic hoses such as steel wire braided hydraulic hose and steel wire spiraled hydraulic hose. All our products are produced in accordance with SAE standards, DIN EN standards.
Our Advantages:
1) Advanced production equipment
2) ISO 14000 / ISO 9000 /CE/MSHA Certificate
3) Strict quality inspection and strong team
4) Environmental protection without pollution
5) Strong and experienced team strength which focus on export
6)High impulse:Hoses tested to 800,000+ impulse cycles(at 133% WP) for a longer service life and fewer failures.
Our factory was founded in 2001,Our registered capital is US$9.2 million, and we cover an area of 36,000 square meters, with a construction area of 15,000 square meters. We have the capacity of monthly producing 500,000+meters of various kinds of rubber hose.
Our rubber materials undergo a series of strict tests:
1)Dynamic Flex Test (counting how many bends until break)
2)Abrasion Resistance Test (measuring weight loss after 2000 wear cycles)
3)Physical Properties Test (tensile strength, breaking strength, modulus)
4)Heat Aging Test (performance under high temperature conditions)
Only rubber that passes the tests can be used.That’s why our hoses are so reliable.
Every single hose undergoes a strict pressure test at 2 times the working pressure.
Hydraulic hose assemblies must undergo several critical tests, including:
1)Burst Test (to determine maximum pressure capacity)
2)High/Low Temperature Test (verifying performance in extreme temperatures)
3)Impulse Test (simulating pressure cycling under operating conditions)
What’s our secret for stable quality? First, we have a strict checking system. Second, and more important, is our team. Many workers have 7-8 years of experience, and our lead engineer has over 30 years.this experience means we make the same good quality, every time.
